FG-100 DDS Function Generator Sine 1Hz~500kHz Frequency Counter Meter

• Application: The DDS function generator is very suitable for the oscilloscope’s scan time calibration factor, due to the high and stable frequency of the DDS.
• Output forms: The main output form are sine and , triangular, sawtooth; The output is also suitable for oscilloscope attenuators and probe pulse adjustment.
• Internal Filter: The generator has a filter which can be turn on/off to suit the output of sine and pulse.
• Easy to Use: Small size, multiple functions, simple operation, easy to carry; The generator is made of high quality material, and practical to use.
• Frequency Range: Sine 1Hz~500kHz (Magnitude is flat up to 200kHz, 200kHz, the magnitude may drop as frequency increases), other forms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range.

Product details

• Package Dimensions ‏ : ‎ 7.2 x 4.41 x 2.05 inches; 8.47 ounces
• Item model number ‏ : ‎ Yosoo Health Gear862b1gixcu
• Date First Available ‏ : ‎ January 2, 2023
• Manufacturer ‏ : ‎ Yosoo Health Gear
• ASIN ‏ : ‎ B0BRJQXX4Y
• Country of Origin ‏ : ‎ China

Product Description

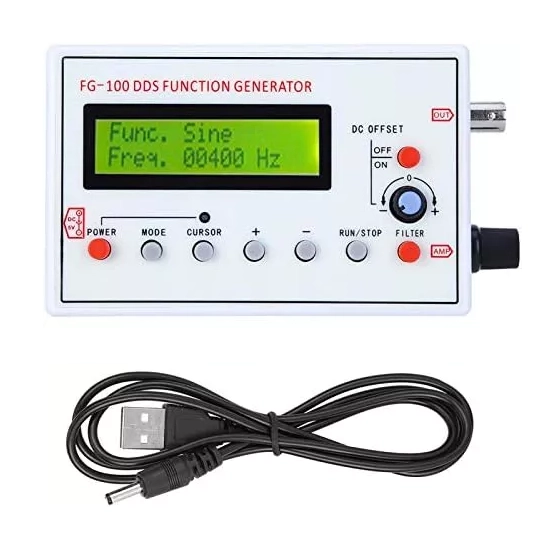

FG-100 DDS Function Generator 1Hz~500kHz Frequency Counter Meter

Features:

Due to the high and stable frequency of the DDS, it is very suitable for the oscilloscope’s scan time calibration factor.

The square output is also suitable for oscilloscope attenuators and probe pulse adjustment.

The main output form are sine and square, triangular.

Have a filter (can be turn on/off ) to suit the output of sine and pulse.

Small size, multiple functions, simple operation, easy to carry.

Made of high quality material, and practical to use.

Specification

Item Type: Function Generator

Material: ABS

Color: As shown in the picture

Frequency Range: Sine 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other forms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range.

Resolution: 1Hz

Output forms: Sine, square, triangular, forward sawtooth, reverse sawtooth.

Sine Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz)

Output Amplitude: Maximum ±10V(P-P).

Output Impedance: 50 ohm

DC Offset: Maximum ±10V, can be disabled

Internal Filter: For sine or pulse, can be turn on/off

Power Supply: DC3.5-10V.

DC 5V adaptor or 3.7V Lithium battery is recommended.

Weight: Approx.172g/6.1oz

Note:

1. Please allow 1-2cm error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
