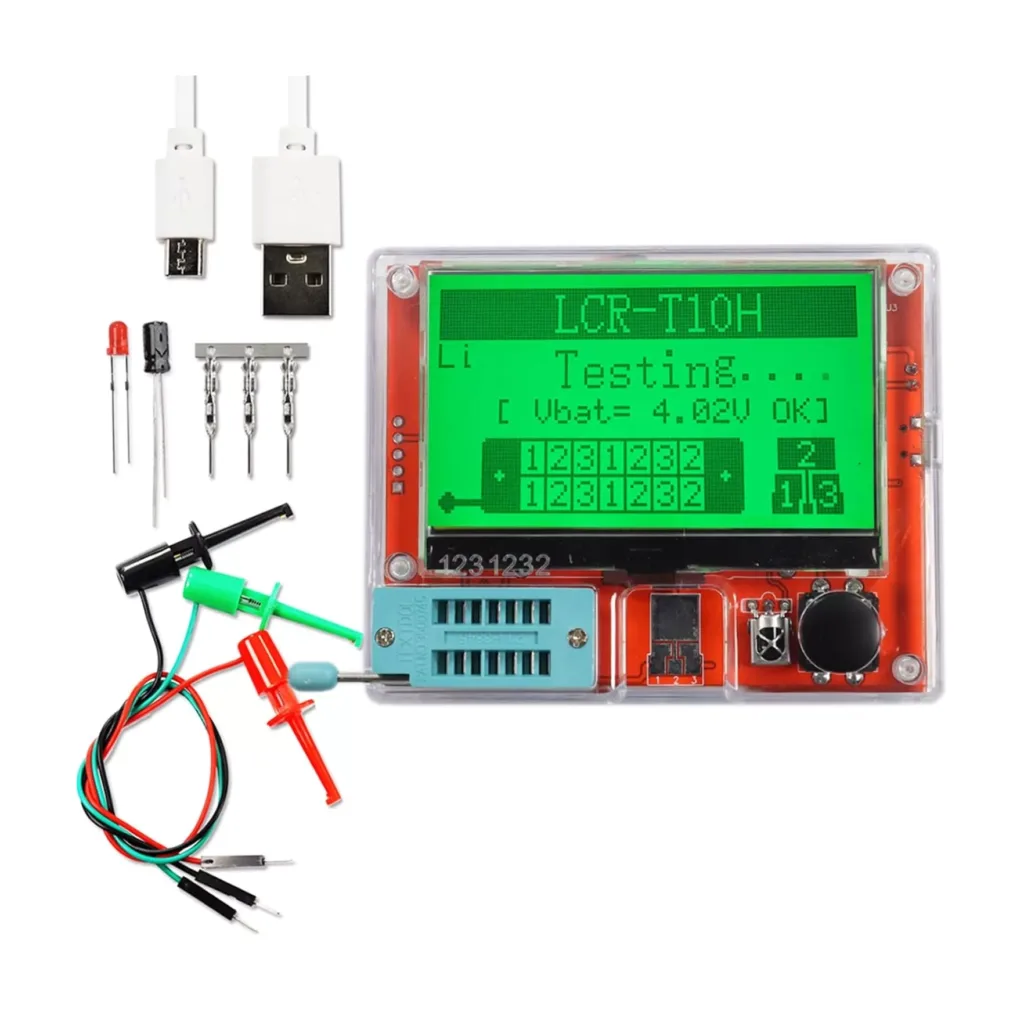

LCR-T10H Transistor Meter Multi-Function acitance Resistance Tester Large Screen Graphic Display Transistor Meter for Diode acitor Resistor Transistor

• It can be widely used to detect NPN and PNP transistor, acitor, resistor, diode, double diode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
• It also can detect zener diode and has the function of self-calibration.
• After detection, the infrared remote control with the “IR” light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared form.
• One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
• Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the s will display on the back light LCD screen clearly.

Product Description

Description:

– 【Easy to use】The instrument is easy to use, just put the component into the test area and press the START button.
– 【Multipurpose】Start automatic measurement, can test, diode, triode, resistance, capacitance, inductance related parameters.
– 【Feature】Capacitor Resistor Detector Can measure, transistor, MOS tube, thyristor, Mosfet tube, IGBT (Note: High power thyristor, IGBT, may not be tested correctly)And can automatically identify the pin position (polarity) and can display related parameters in graphics (such as magnification, VBE and other parameters),Can test the code value of infrared remote control (only support NEC format)
– 【Size】Capacitor Resistor Detector is 3.15”x2.36”x0.79” in size.
– 【Note】: Be sure to discharge the capacitor before testing it. Otherwise, the instrument will be directly damaged. This instrument is an active instrument. use this instrument to measure live circuit boards. It will cause damage to circuit boards and instruments.



Size Chart:

8cmx6cmx2cm/3.15inchx2.36inchx0.79inch



Package Includes:

1 Transistor Tester



Note:

Please allow slightly errors due to manual measurement and different monitors.
