FG-100 DDS Function Generator Counter Source Module 1HZ-500KHz

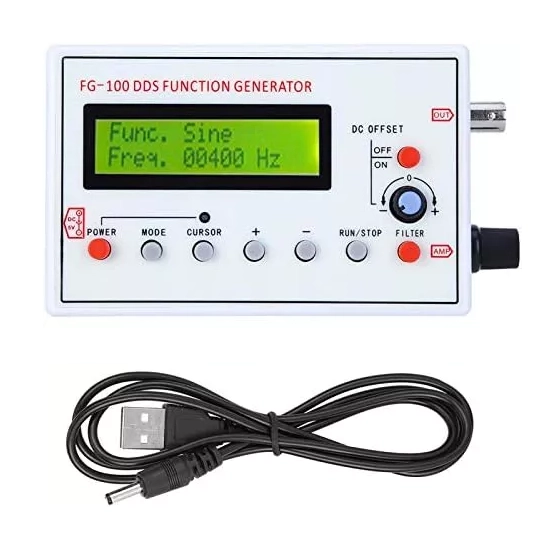

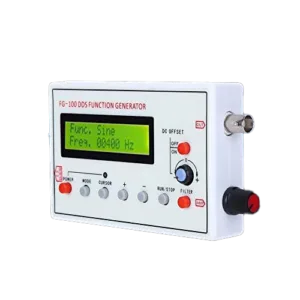

FG-100 DDS Function Generator

1.The main technical parameters:

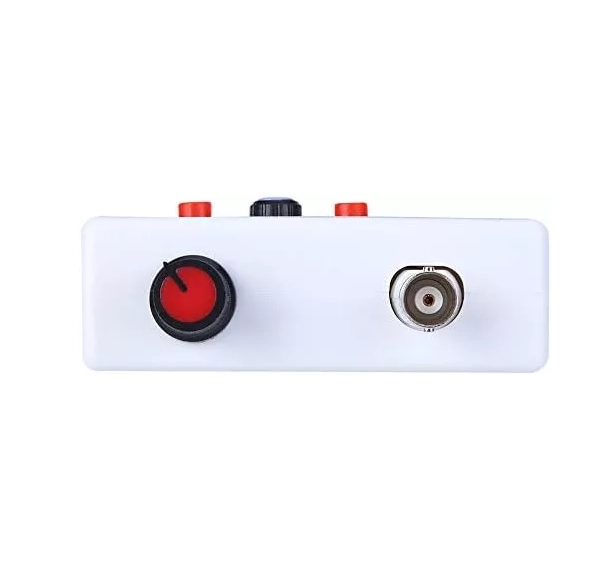

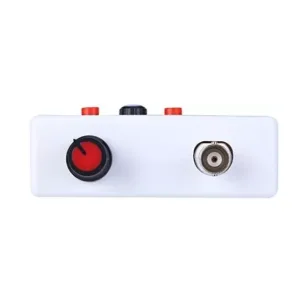

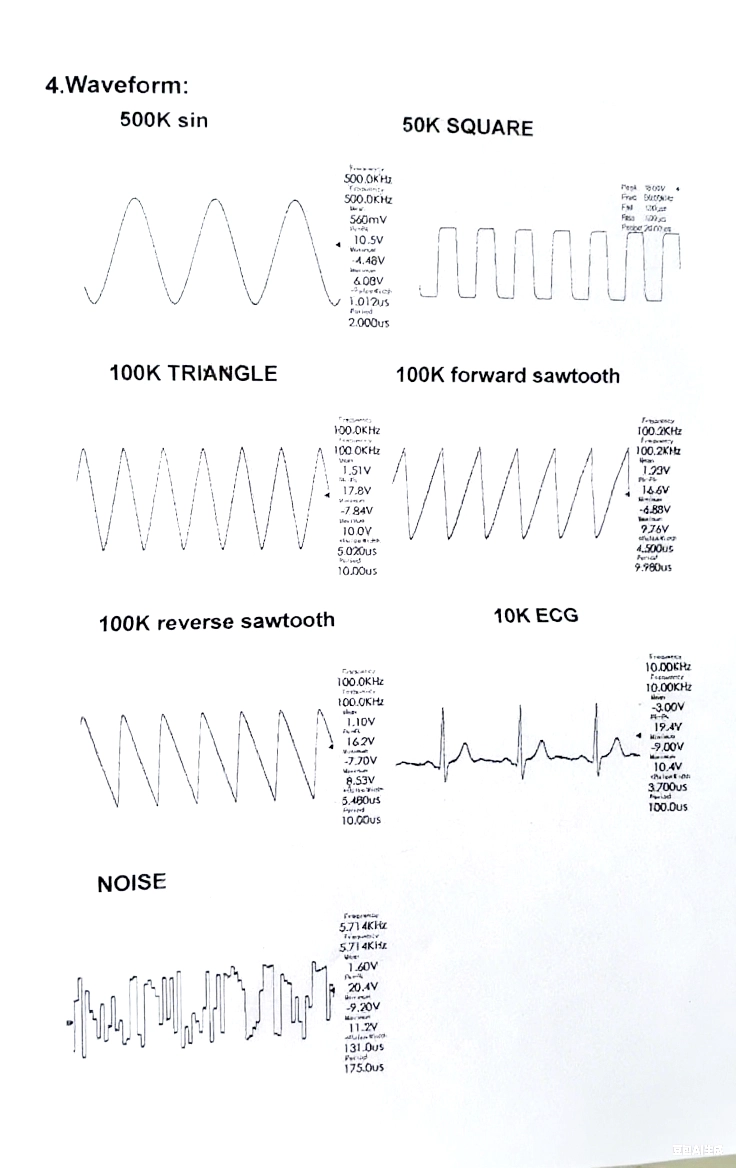

1. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise wave.

2. Power supply: DC4-10 V ,  it is recommended to choose DC5 V when using the adapter , and 3.7 V lithium battery when using battery power.

3. Current: 250 MA when the voltage is 5 V
4.Frequency range: sine wave 1 Hz-500 kHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1 Hz-50 kHz (but the upper limit of adjustable frequency is not limited, if the distortion and shaking requirements are not high, use the frequency Can be further increased)

.5.Resolution: 1 Hz.

6.Sine wave distortion: <1% below 1 kHz,<0.5% above 1 k Hz.

7.Output amplitude:maximum 10 V(P-P).

8.Output impedance:50 ohms.

9.DC offset: maximum +(-) 10 V, with shutdown function.

10. All setting parameters can be saved.
11. There are filters that can be turned on and off, which can be well adapted to sine and pulse waveform output.

2.Features:

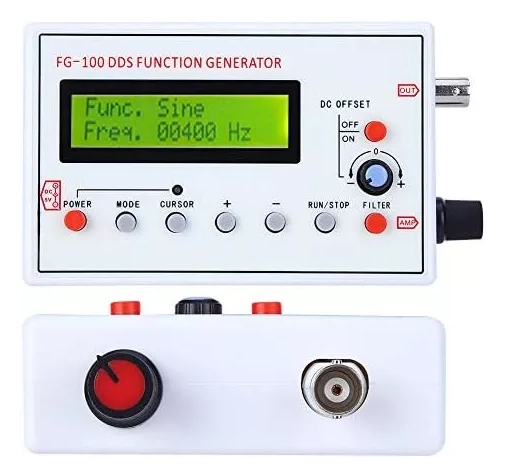

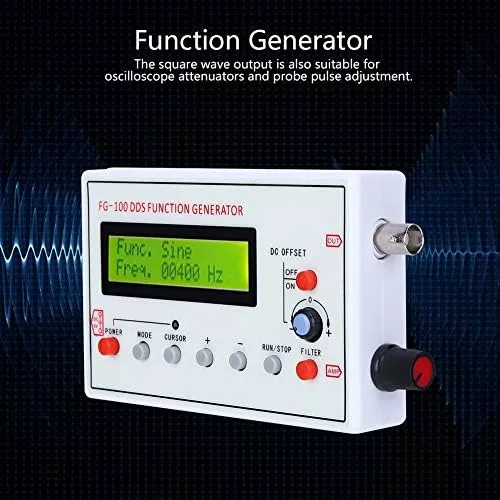

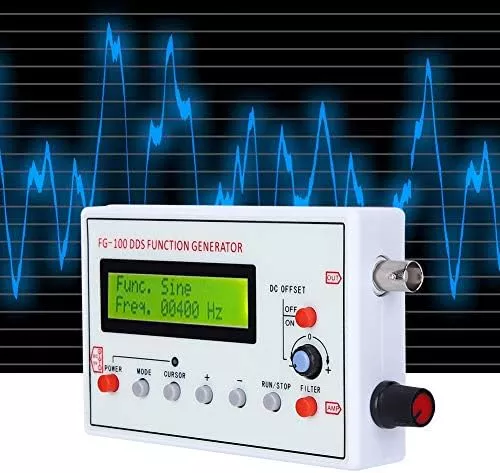

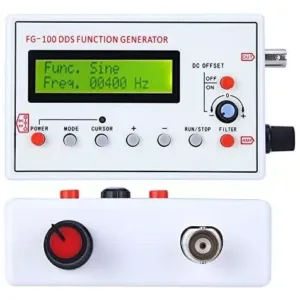

Compact size (125*80* 26.5 MM), weight 0.175 kg,complete functions, simple operation, easy to carry.  It can be powered by a power adapter or a 3.7 V lithium battery, Together with an oscilloscope, it can be used for electronic circuit test and debugging,frequency characteristics and impulse response test and measurement of audio amplifiers. Due to the good accuracy and frequency stability of DDS, it is also very suitable for oscilloscope sweep time factor calibration, The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment.

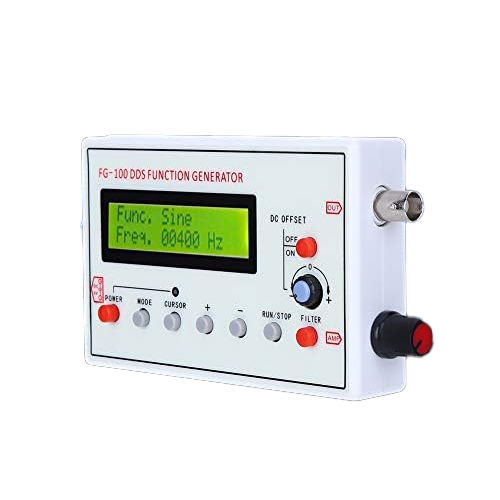

3.Key Description:

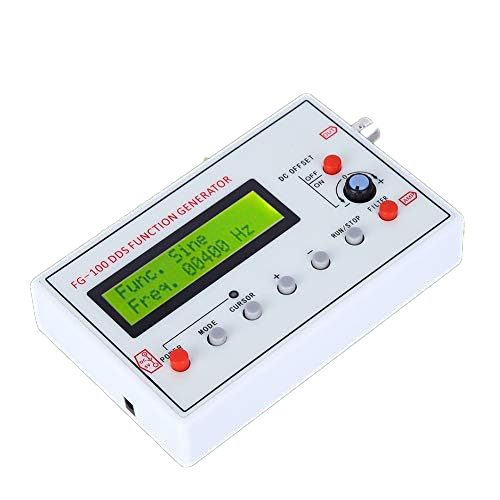

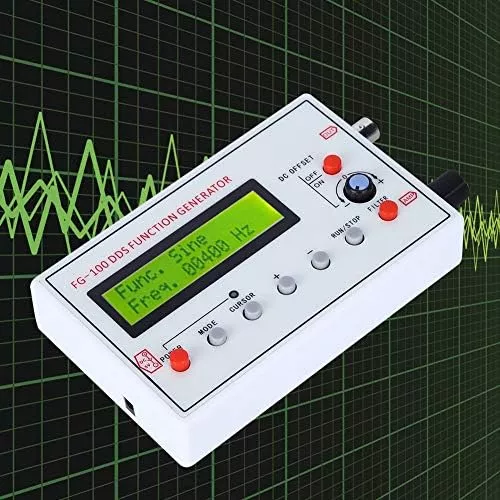

MODE: The mode button is used to switch the waveform

CURSOR:Used to stabilize the cursor(Adjust the frequency with +-key)

RUN/STOP: Run or stop wave output
When the cursor does not flash, the waveform is output, and other keys are invalid
+: Frequency+
-: Frequency-
