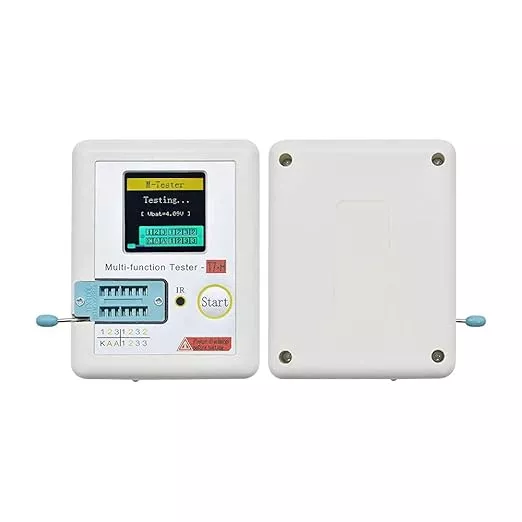

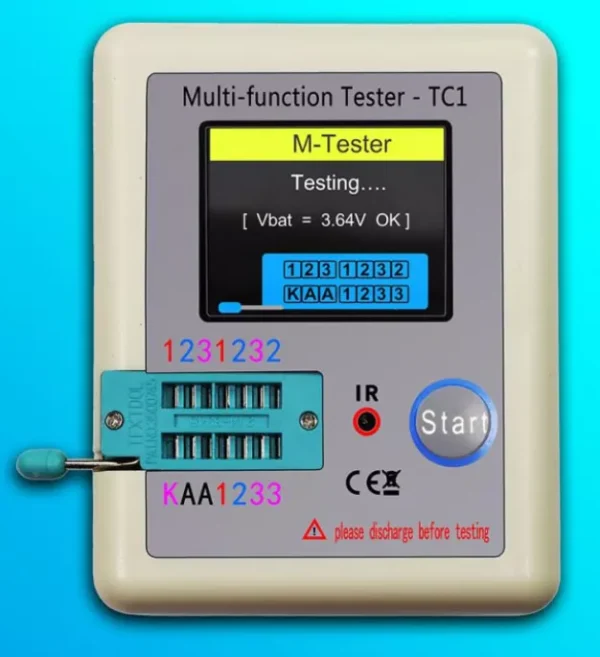

Multi-Function Tester / 3.5 inch Colorful Display Pocketable Multifunctional TFT Backlight Transistor LCR-TC1 Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET LW21
$20.90
- LCR-TC1 Multi-Function Capacitance Resistance ESR Tester: Can measure three tube, two tube, resistance, capacitance, inductance, thyristor, field effect tube, voltage regulator, double two tube, light emitting two tube, infrared decoding
- Add IR Decoder: After the component detection is completed, the infrared remote control at the tester “IR” test hole, press the remote control key, the tester will be display the user code & data code and the corresponding infrared waveform after the successful decoding

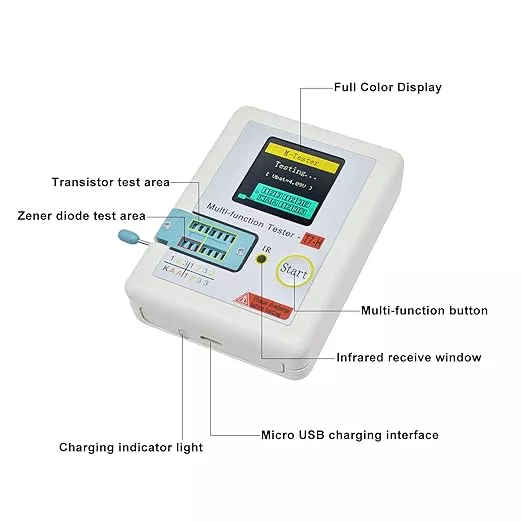

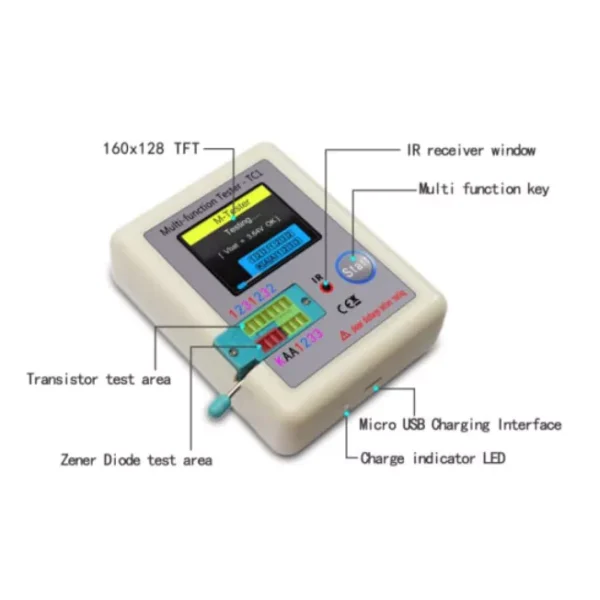

- Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly
- Auto shut-down Function: Our advanced electronic transistor tester owns auto shut-down function.Convenient and practical
- One button operation, automatically detect and shutdown, and you can also press the multi-functional button to close the detector
Product details
- Package Dimensions : 6.14 x 4.61 x 1.5 inches; 3.88 ounces
- Item model number : LCR-TC1
- Date First Available : November 15, 2019
- Manufacturer : Big waves
- ASIN : B081K4CM1F
Product Description
Specification:
– Display: 1.8 inch TFT Screen, Color Screen
– Diode Range: less than 4.5V
– Zener Diode:Transistor Detect Area: 0.01-4.5V
– Zener Diode Detect Area: 0.01-30V
– Triac Range: IGT less than 6mA
– Capacitance: 25pF-100mF
– Resistor: 0.01-50MΩ
– Inductance: 0.01mH-20H
– Power Voltage: 3.7V

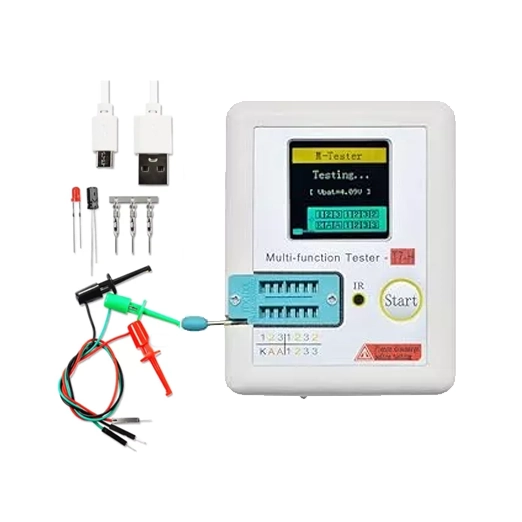

Package Included:
1 *LCR-TC1 Tester
1 * USB Cable
1 * Test Clip
1 * Capacitance
1 * Resistance
